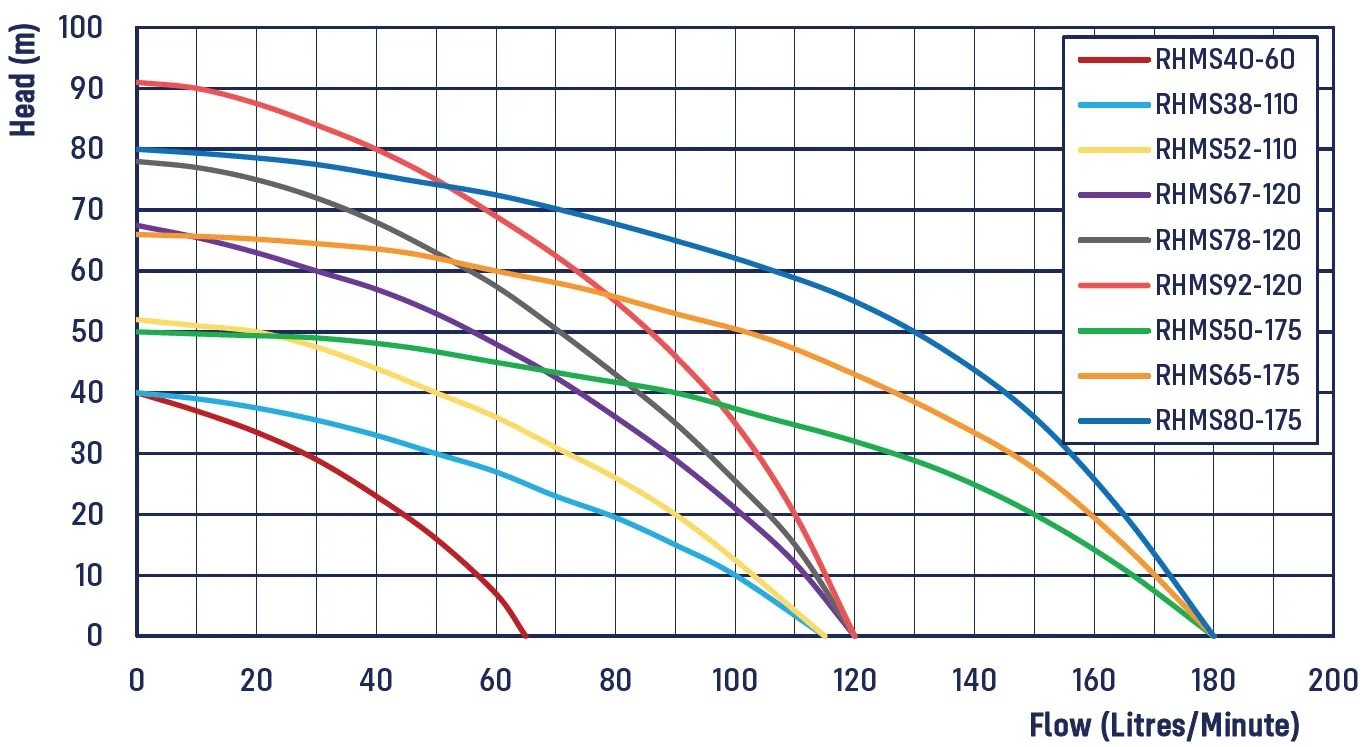

Pump performance curves for the reefe RHMS series irrigation, house and tank pumps.
Front side view of a reefe rhms pump for tank water transfer with not controller.
RHMS irrigation pump with pressure switch, pressure tank, t piece and pressure gauge. on white background.
Isometric view of a reefe RHMS series horizontal multistage pump for irrigation and home water supply on a white background.
Pump performance curves for the reefe RHMS series irrigation, house and tank pumps.
Front side view of a reefe rhms pump for tank water transfer with not controller.
RHMS irrigation pump with pressure switch, pressure tank, t piece and pressure gauge. on white background.
Isometric view of a reefe RHMS series horizontal multistage pump for irrigation and home water supply on a white background.

REEFE® RHMS Series Horizontal Multistage Pumps

from $795.36

Contact us for assistance choosing a pump

Looking for a reliable and efficient pump that can meet the high demands of domestic and commercial applications? Look no further than the REEFE® RHMS Multistage Pressure pumps.

Our pumps are built with heavy-duty yet lightweight construction, making them easy to install and operate. With their installer-friendly design, you can enjoy trouble-free performance over an extended service life. Plus, the quiet running operation ensures you won't be disturbed by annoying noise.

These pumps are perfect for anyone looking to increase water pressure for their home, irrigation system, or commercial establishment. With their superior quality, you can trust their long-lasting performance to deliver a daily robust and uninterrupted water supply.

Don't settle for anything less than the best. Choose the REEFE® RHMS Multistage Pressure pumps for your water supply needs and experience the difference today.

Controller:
Model:

Contact us for assistance choosing a pump

Looking for a reliable and efficient pump that can meet the high demands of domestic and commercial applications? Look no further than the REEFE® RHMS Multistage Pressure pumps.

Our pumps are built with heavy-duty yet lightweight construction, making them easy to install and operate. With their installer-friendly design, you can enjoy trouble-free performance over an extended service life. Plus, the quiet running operation ensures you won't be disturbed by annoying noise.

These pumps are perfect for anyone looking to increase water pressure for their home, irrigation system, or commercial establishment. With their superior quality, you can trust their long-lasting performance to deliver a daily robust and uninterrupted water supply.

Don't settle for anything less than the best. Choose the REEFE® RHMS Multistage Pressure pumps for your water supply needs and experience the difference today.

Pump Data Sheets | Parts Breakdown

  • Power: 240VAC

    AMPS: 3.5

    P1: 0.79kW

    P2: 0.6kW

    Rated Flow: 25

    Rated Head: 30

    Max Flow: 60

    Max Head: 40

    No. Of Taps: 2-4

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 6 KG

    Size: 357(L), 126(W), 160(H)

  • Power: 240VAC

    AMPS: 3.5

    P1: 0.79kW

    P2: 0.6kW

    Rated Flow: 25

    Rated Head: 30

    Max Flow: 60

    Max Head: 40

    No. Of Taps: 2-4

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 7.7 KG

    Size: 357(L), 126(W), 320(H)

  • Power: 240VAC

    AMPS: 3.5

    P1: 0.79kW

    P2: 0.6kW

    Rated Flow: 25

    Rated Head: 30

    Max Flow: 60

    Max Head: 40

    No. Of Taps: 2-4

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 9.15 KG

    Size: 357(L), 280(W), 590(H)

  • Power: 240VAC

    AMPS: 3.6

    P1: 0.83kW

    P2: 0.75kW

    Rated Flow: 48

    Rated Head: 30

    Max Flow: 110

    Max Head: 38

    No. Of Taps: 4-6

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 9.3 KG

    Size: 353(L), 155(W), 179(H)

  • Power: 240VAC

    AMPS: 3.6

    P1: 0.83kW

    P2: 0.75kW

    Rated Flow: 48

    Rated Head: 30

    Max Flow: 110

    Max Head: 38

    No. Of Taps: 4-6

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 11 KG

    Size: 353(L), 155(W), 339(H)

  • Power: 240VAC

    AMPS: 3.6

    P1: 0.83kW

    P2: 0.75kW

    Rated Flow: 48

    Rated Head: 30

    Max Flow: 110

    Max Head: 38

    No. Of Taps: 4-6

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 12.45 KG

    Size: 353(L), 280(W), 609(H)

  • Power: 240VAC

    AMPS: 5.4

    P1: 1.24kW

    P2: 0.75kW

    Rated Flow: 48

    Rated Head: 30

    Max Flow: 110

    Max Head: 52

    No. Of Taps: 5-8

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 9.8 KG

    Size: 353(L), 280(W), 609(H)

  • Power: 240VAC

    AMPS: 5.4

    P1: 1.4kW

    P2: 0.8kW

    Rated Flow: 48

    Rated Head: 40

    Max Flow: 110

    Max Head: 52

    No. Of Taps: 5-8

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 11.5 KG

    Size: 372(L), 155(W), 339(H)

  • Power: 240VAC

    AMPS: 5.4

    P1: 1.24kW

    P2: 0.8kW

    Rated Flow: 48

    Rated Head: 40

    Max Flow: 110

    Max Head: 52

    No. Of Taps: 5-8

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 12.95 KG

    Size: 372(L), 280(W), 609(H)

  • Power: 240VAC

    AMPS: 7.2

    P1: 1.66kW

    P2: 1.2kW

    Rated Flow: 48

    Rated Head: 53

    Max Flow: 120

    Max Head: 67

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 10.5 KG

    Size: 392(L), 155(W), 179(H)

  • Power: 240VAC

    AMPS: 7.2

    P1: 1.66kW

    P2: 1.2kW

    Rated Flow: 48

    Rated Head: 53

    Max Flow: 120

    Max Head: 67

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 12.2 KG

    Size: 390(L), 155(W), 339(H)

  • Power: 240VAC

    AMPS: 7.2

    P1: 1.66kW

    P2: 1.2kW

    Rated Flow: 48

    Rated Head: 53

    Max Flow: 120

    Max Head: 67

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 12.2 KG

    Size: 390(L), 155(W), 339(H)

  • Power: 240VAC

    AMPS: 7.2

    P1: 1.66kW

    P2: 1.2kW

    Rated Flow: 48

    Rated Head: 53

    Max Flow: 120

    Max Head: 67

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 13.65 KG

    Size: 392(L), 280(W), 609(H)

  • Power: 240VAC

    AMPS: 7.8

    P1: 1.79kW

    P2: 1.2kW

    Rated Flow: 48

    Rated Head: 62

    Max Flow: 120

    Max Head: 78

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 11.2 KG

    Size: 410(L), 155(W), 179(H)

  • Power: 240VAC

    AMPS: 7.8

    P1: 1.79kW

    P2: 1.2kW

    Rated Flow: 48

    Rated Head: 62

    Max Flow: 120

    Max Head: 78

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 12.9 KG

    Size: 410(L), 155(W), 339(H)

  • Power: 240VAC

    AMPS: 8.6

    P1: 1.98kW

    P2: 1.5kW

    Rated Flow: 48

    Rated Head: 75

    Max Flow: 120

    Max Head: 92

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 12.6 KG

    Size: 430(L), 155(W), 179(H)

  • Power: 240VAC

    AMPS: 8.6

    P1: 1.98kW

    P2: 1.5kW

    Rated Flow: 48

    Rated Head: 75

    Max Flow: 120

    Max Head: 92

    No. Of Taps: 6-10

    Cable Length: 1.5m

    Inlet: 25mm

    Outlet: 25mm

    Weight: 14.3 KG

    Size: 410(L), 155(W), 339(H)

  • Power: 240VAC

    AMPS: 8.9

    P1: 2.05kW

    P2: 1.1kW

    Rated Flow: 88

    Rated Head: 40

    Max Flow: 180

    Max Head: 50

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 12.7 KG

    Size: 436(L), 191(W), 212(H)

  • Power: 240VAC

    AMPS: 8.9

    P1: 2.05kW

    P2: 1.1kW

    Rated Flow: 88

    Rated Head: 40

    Max Flow: 180

    Max Head: 50

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 14.75 KG

    Size: 436mm(L), 191mm(W), 372mm(H)

  • Power: 240VAC

    AMPS: 8.9

    P1: 2.05kW

    P2: 1.1kW

    Rated Flow: 88

    Rated Head: 40

    Max Flow: 180

    Max Head: 50

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 17.75 KG

    Size: 436mm(L), 280mm(W), 642mm(H)

  • Power: 240VAC

    AMPS: 11.8

    P1: 2.58kW

    P2: 1.5kW

    Rated Flow: 88

    Rated Head: 54

    Max Flow: 180

    Max Head: 65

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 14.4 KG

    Size: 460mm(L), 191mm(W), 212mm(H)

  • Power: 240VAC

    AMPS: 11.8

    P1: 2.58kW

    P2: 1.5kW

    Rated Flow: 88

    Rated Head: 54

    Max Flow: 180

    Max Head: 65

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 16.45 KG

    Size: 460mm(L), 191mm(W), 372mm(H)

  • Power: 240VAC

    AMPS: 11.8

    P1: 2.58kW

    P2: 1.5kW

    Rated Flow: 88

    Rated Head: 54

    Max Flow: 180

    Max Head: 65

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 17.75 KG

    Size: 460mm(L), 180mm(W), 642mm(H)

  • Power: 240VAC

    AMPS: 12.4

    P1: 2.76kW

    P2: 2.2kW

    Rated Flow: 88

    Rated Head: 66

    Max Flow: 180

    Max Head: 80

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 15.5 KG

    Size: 485mm(L), 191mm(W), 212mm(H)

  • Power: 240VAC

    AMPS: 12.4

    P1: 2.76kW

    P2: 2.2kW

    Rated Flow: 88

    Rated Head: 66

    Max Flow: 180

    Max Head: 80

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 17.55 KG

    Size: 485mm(L), 191mm(W), 372mm(H)

  • Power: 240VAC

    AMPS: 12.4

    P1: 2.76kW

    P2: 2.2kW

    Rated Flow: 88

    Rated Head: 66

    Max Flow: 180

    Max Head: 80

    No. Of Taps: 8-14

    Cable Length: 1.5m

    Inlet: 32mm

    Outlet: 32mm

    Weight: 18.85 KG

    Size: 485mm(L), 280mm(W), 642mm(H)

  • Power: 240VAC

    AMPS: 12

    P1: 2.76kW

    P2: 2.2kW

    Rated Flow: 175

    Rated Head: 33

    Max Flow: 350

    Max Head: 46

    No. Of Taps: 15-20

    Cable Length: 1.5m

    Inlet: 50mm

    Outlet: 40mm

    Weight: 16.5 KG

    Size: 500mm(L), 193mm(W), 212mm(H)

Applications:

  • Amenities blocks, hotels, restaurants

  • Whole house supply, apartment blocks

  • Irrigation supply

  • Stock watering systems

Features & Benefits:

  • Assembled with European automatic pressure controller with run-dry protection

  • Quiet operation for minimal disturbance in application

  • Lower power consumption for greater efficiency

  • Max Water Temperature 35°C

Construction:

  • Heavy duty 304 stainless steel housing

  • In-built thermal overload protection on motor

  • Pressure controller with quick plug connection

  • RPC25E Adjustable Pressure controller on 1" /25mm outlet models •

  • PC32E Adjustable Pressure controller on 1 1/4” / 32mm outlet models

  • Brass barrel union • Noryl/fibreglass diffusers

  • Stainless steel impellers

  • Ingress Protection IP44

  • Insulation Class F



3 Year Warranty: This product is covered by a REEFE Product Replacement Warranty.
